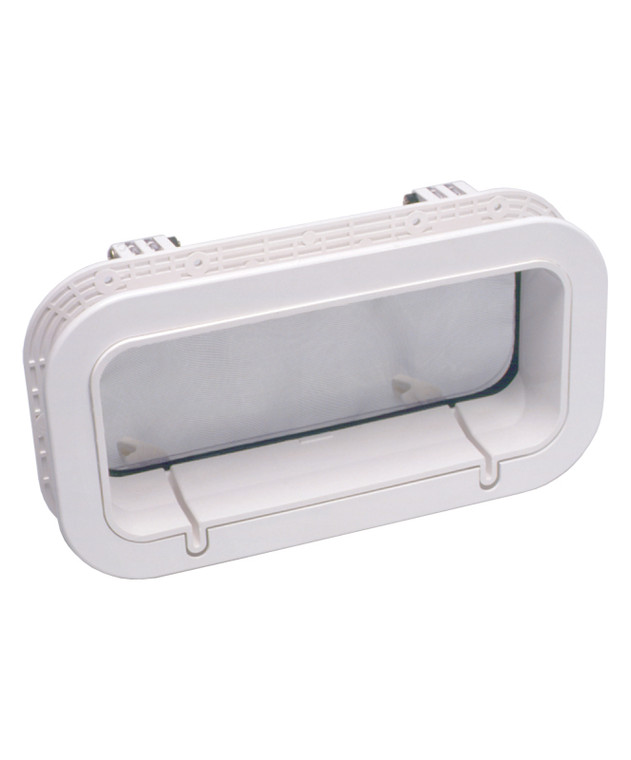

Beckson Marine PO512DWC-20 Opening Newport Port with Rain Drain
Beckson Marine PO512DWC-20 Opening Newport Port with Rain Drain
Better design and construction than other manufacturers. NO CORROSION, NO CONDENSATION, NO LEAKS. NO WATERFALL when you open the window. Ready availability of component parts for the life of your port. Beckson Fixed and Opening Ports are engineered to standard mounting hole sizes for interchangeability and replacement of other manufacturer's ports.
Features
Body Color: White
Lens Color: Clear
Outside Frame Overall Dimension: 7-3/4" x 14-5/8" (19.7 x 37.1 cm)
Spigot Dimension Hole cut size: 5-1/2" x 12-1/2" (14.0 x 31.8 cm)
Lens OD: 5-11/16" x 13"
Screen OD: 5-3/16" x 12-7/16"
Using any of these dimensions will determine which Beckson Newport you have. The overall dimension is the trim ring or frame size. Please make sure to measure the length of the thru-hull portion with the lens closed to the edge of the trim ring. That will tell you how long a spigot you need. The spigot should be flush with the edge of the trim ring. This will maximize the draining action of the frame.
Better design and construction than other manufacturers. NO CORROSION, NO CONDENSATION, NO LEAKS. NO WATERFALL when you open the window. Ready availability of component parts for the life of your port. Beckson Fixed and Opening Ports are engineered to standard mounting hole sizes for interchangeability and replacement of other manufacturer's ports.
Features
Using any of these dimensions will determine which Beckson Newport you have. The overall dimension is the trim ring or frame size. Please make sure to measure the length of the thru-hull portion with the lens closed to the edge of the trim ring. That will tell you how long a spigot you need. The spigot should be flush with the edge of the trim ring. This will maximize the draining action of the frame.
| Brand | Beckson Marine, Inc. |
|---|---|
| Cross Reference / Specs |
