Racor R12S Fuel Filter Water Separator

SKU:
RACR12S
|
MPN
R12S
|
UPC:
706672000170
$28.99 - $330.49
Current Stock:
Adding to cart… The item has been added

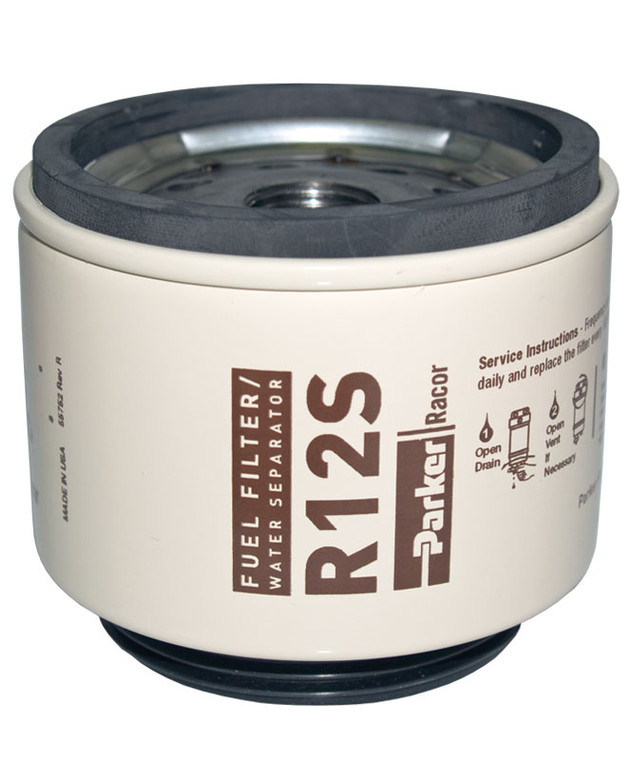

Racor R12S Fuel Filter Water Separator.

The R12 fuel filter/water separators are designed to be installed on the suction side of the fuel system with maximum flow capacities of 15 gallons per hour (GPH). The compact size versatility make the R12 series a very popular small filter for many applications.

Features:
  • Fits Racor Series - 120A, 120B, 140

  • Micron Rating: 2 micron

  • Includes Upper gasket - RK 10503 & Lower gasket - RK10012

  • Filters gasoline, diesel, and gasoline/oil blended fuels

  • Maximum Fow Rate: 15 GPH (57 LPH)

  • 99% efficient Aquabloc® water repelling filter media


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Parker | Racor Division
    Cross Reference / Specs BALDWIN
  • BF1379

  • CARQUEST
  • 86582

  • CHAMP
  • LFF8676

  • FLEETGUARD
  • FS19628

  • FRAM
  • PS10975

  • HASTINGS
  • BF1379

  • LUBER-FINER
  • LFF8676

  • NAPA
  • 3582

  • WIX
  • 33582



  • Application: Inboard
  • Fits Racor Series: 120A, 120B, 140
  • Filters gasoline, diesel, and gasoline/oil blended fuels
  • Maximum Flow Rate: 15 GPH (57 LPH)
  • Micron Rating: 2
  • Maximum Working Pressure: 15 PSI (1.03 bar)
  • Height: 2.5 in. (6.35 cm)
  • Diameter: 3 in. (7.62 cm)
  • Center Threads: M18 X 1.5
  • Includes Upper gasket - RK 10503 & Lower gasket - RK10012
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
