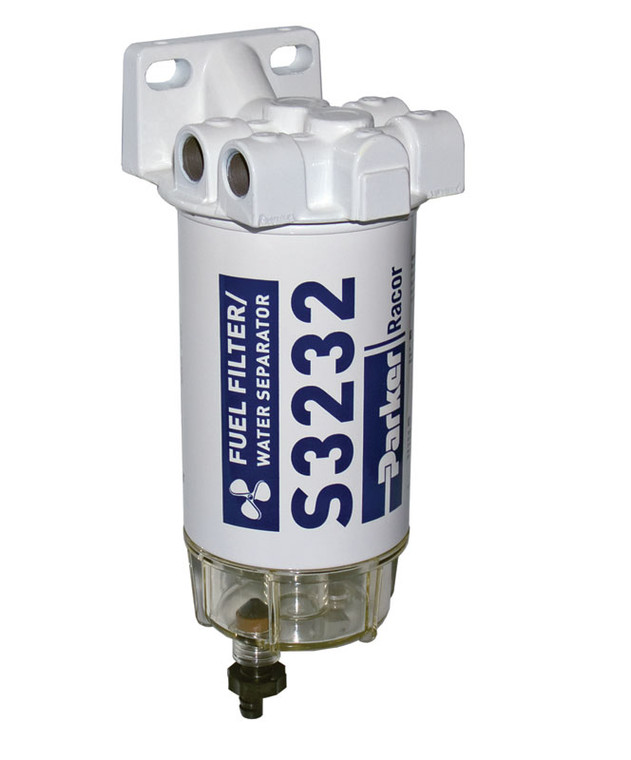

Racor 660R-RAC-01 Fuel Filter Water Separator

SKU:
RAC660R-RAC-01
|
MPN
660R-RAC-01
|
UPC:
706672000644
$132.99 - $1,516.09
Current Stock:
Adding to cart… The item has been added
Racor 660R-RAC-01 Fuel Filter Water Separator.

Don’t be caught in the water without one of these Racor gasoline spin on series filters. These filters are designed for high-performance applications, which means your engine will perform better than ever with clean, water-free fuel.

Features:
  • Removes 99 percent of free water

  • 90 GPH (340 LPH) maximum flow rate

  • Includes 10 micron element - S3232TUL

  • 4-port, with 3/8”-18 NPTF threads

  • die-cast aluminum mounting head

  • Filters gasoline fuel

  • Superior corrosion resistance with electrostatic powder coating


    • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
    • Brand Parker | Racor Division
    Cross Reference / Specs

  • Application: Outboard
  • Maximum Flow Rate:90 GPH (340 LPH)
  • Replacement Filter: 10 micron = S3232TUL
  • Port Size:3/8"-18 NPTF
  • Number of Ports: Inlets =2, Outlets = 2
  • Height: 11.0 in. (27.9 cm)
  • Width: 4.2 in. (10.7 cm)
  • Depth: 4.5 in. (11.4cm)
  • Weight (dry): 3.0 lb (1.4 kg)
  • Clean Pressure Drop: 0.61 PSI (4.23 kPa)
  • Maximum Pressure: 7 PSI (0.5 bar)
  • Underbowl Clearance: 1.0 in. (2.5 cm)
  • Water Removal Efficiency: 99 percent
  • Ambient Temperature Range: -40° to +255°F (-40° to +124°C)
  • Maximum Fuel Temperature: 190°F (32°C)
    		•
