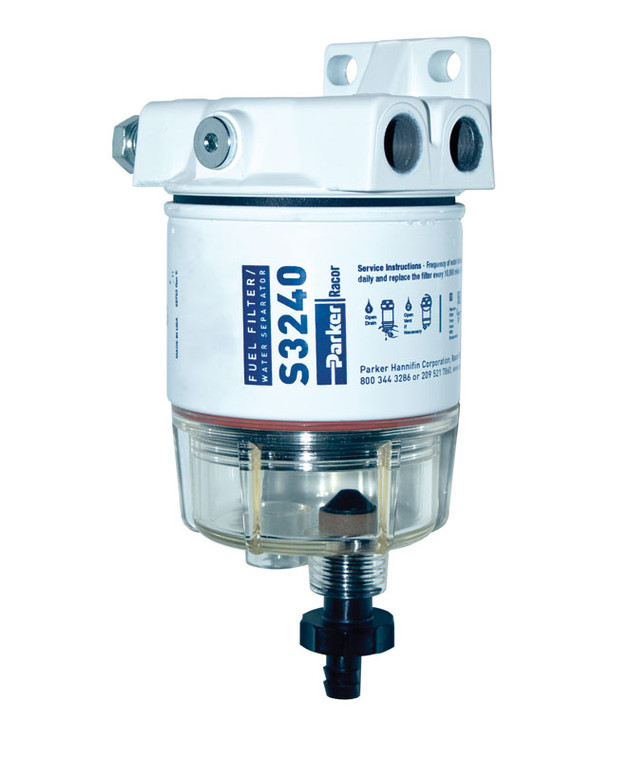

Racor 120R-RAC-01 Fuel Filter Water Separator

SKU:
RAC120R-RAC-01
|
MPN
120R-RAC-01
|
UPC:
706672010018
$96.99 - $1,105.69
Current Stock:
Adding to cart… The item has been added
Racor 120R-RAC-01 Fuel Filter Water Separator.

Designed specifically for gasoline outboards when filter is mounted above the deck, do not mount below deck or in the bilge area. These high-performance filters will help your engine run better than ever with clean, water-free fuel. There has never been a better choice for your marine application than a Racor fuel filter/water separator. Do not use below deck or in the bilge area.

Features:
  • Includes RK 10222 Plastic Bowl

  • Removes 99 percent of free water and sediment

  • Includes 10 micron Aquabloc®II element - S3240

  • 4-port, with 1/4”-18 NPTF threads

  • Filters gasoline fuel


    • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
    • Brand Parker | Racor Division
    Cross Reference / Specs

  • Application: Outboard
  • Maximum Flow Rate: 30 GPH (114 LPH)
  • Replacement Filter: 10 micron = S3240
  • Replacement Filter: 2 micron = R12S
  • Replacement Filter: 30 micron = R12P

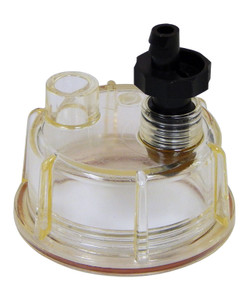

  • Replacement Bowl: RK 10222 - Plastic
  • Replacement Bowl: RK 10553 - Plastic
  • Replacement Bowl: RK 10109 - Metal w/ Water probe port
  • Replacement Bowl: RK 10215 - Plastic w/ Water probe port
  • Center Threads: M18 x 1.5
  • Port Size: 1/4"-18 NPTF
  • Number of Ports: Inlets = 2, Outlets = 2
  • Height: 6.5 in. (16.5 cm)
  • Width: 3.2 in. (8.1 cm)
  • Depth: 3.2 in. (8.1 cm)
  • Weight (dry): 1.1 lb (0.5 kg)
  • Clean Pressure Drop: 0.15 PSI (0.01 bar)
  • Maximum Allowable Pressure: 7 PSI (0.5 bar)
  • Underbowl Clearance: 2.0 in. (5.1 cm)
  • Water Removal Efficiency: 99 percent
  • Ambient Temperature Range: -40° to +255°F (-40° to +124°C)
  • Maximum Fuel Temperature: 190°F (88°C)
    		•
