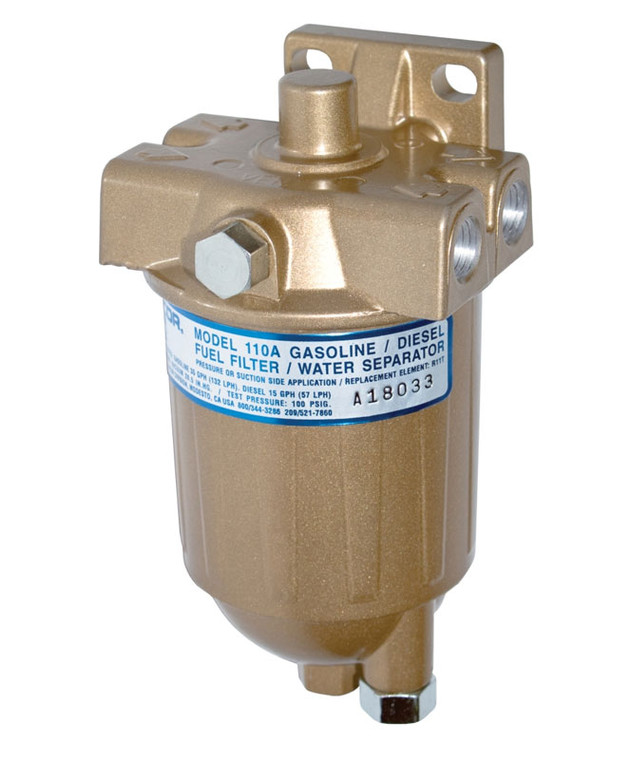

Racor 110A High Pressure Fuel Filter Water Separator

SKU:
RAC110A
|
MPN
110A
|
UPC:
706672000224
$133.99 - $763.79
Current Stock:
Racor 110A High Pressure Fuel Filter Water Separator.

The 110A Series is a high pressure capable, two piece, all aluminum fuel filter/water separator with a cartridge type filter element.

Features:
  • 100 psi /6.9 bar operating pressure or can be used on vacuum side of pumps

  • 4 port (1/4"- 18 NPTF (SAE J467), die-cast aluminum unitized head

  • Mounting holes spaced at 1.4" (35.6 mm), for 1/4" bolt

  • 2 piece powder-coated aluminum construction

  • Filters gasoline, diesel, and gasoline/oil blended fuels

  • Flow rates up to 35 gph (132 lph) with gasoline applications

  • Flow rates up 15 gph (57 lph) for diesel fuel application

  • Certifications: ABYC, NMMA type accepted, UL listed

  • Compact design

  • Includes: 10 Micron element - R11T

  • Heavy duty construction

  • Easy to service


    • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
    • Brand Parker | Racor Division
    Cross Reference / Specs CRUSADER
  • 47046


  • Application: Outboard, Inboard
  • Element Removal Clearance: Below 2.1 inch (5.1 cm)
  • Series Type: Cartridge FF/WS
  • Series: 100
  • Mounting Holes: 1.4" (35.6 mm) spaced, for 1/4" bolt
  • Flow Rate (gph): 15 gph in diesel, 35 gph in gasoline
  • Flow Rate (lph): 57 lph in diesel, 132 lph in gasoline
  • Micron Rating: 10
  • Port Size: 1/4"-18 NPTF (SAE J476)
  • Number of Ports: 4
  • Replacement Element: R11S = 2 micron, R11T = 10 micron, R11P = 30 micron
  • Material: Powder Coated Die-cast aluminum
  • Width (inch): 3.2
  • Width (cm): 8.1
  • Height (inch): 6
  • Height (cm): 15.2
  • Depth (inch): 3.2
  • Depth (cm): 8.1
  • Weight (lb): 1.3
  • Weight (kg): 0.59
  • Working Pressure Maximum (psi): 100
  • Working Pressure Maximum (bar): 6.9
  • Clean Pressure Drop (psi): 0.15
  • Clean Pressure Drop (kPa): 1.03
  • Maximum Air Inlet Temperature (F): -40 to +250
  • Maximum Ambient Temperature (C): -40 to +121
    		•
