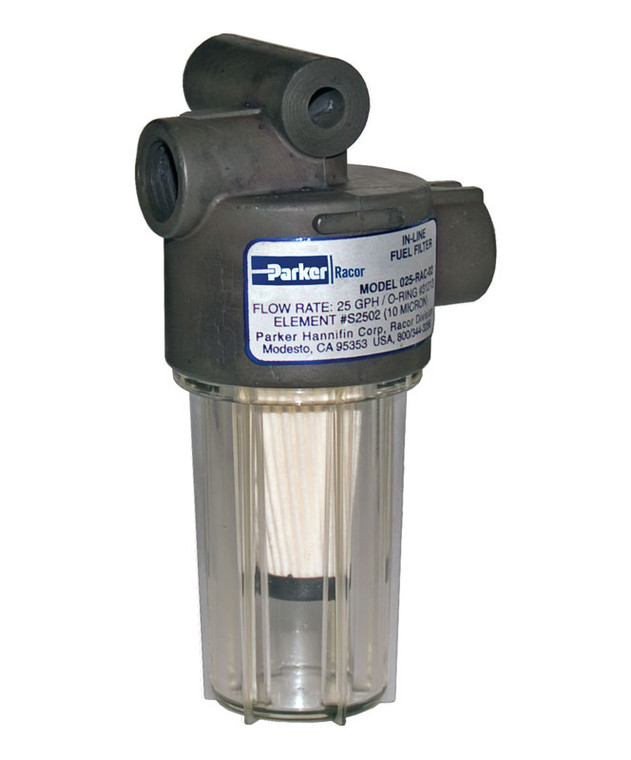

Racor 025-RAC-02 Fuel Filter Water Separator Assembly

SKU:
RAC025-RAC-02
|
MPN
025-RAC-02
|
UPC:
706672025029
Our Price: $125.99
Current Stock:
1
Adding to cart… The item has been added
Racor 025-RAC-02 Fuel Filter Water Separator Assembly.

From personal watercraft to agricultural equipment, Racor in-line filters are designed to protect fuel pumps, carburetors, injectors and related fuel system components. This product has a die cast aluminum mounting head. The rugged collection bowl is transparent for easy water detection. The replacement element is easily serviced.

Features:
  • Meets ABYC standards for outboard powered vessels

  • Includes 10 micron Aquabloc®II element - S2502

  • *Filters gasoline & diesel fuels

  • Patented design means no inferior elements can fit

  • Heavy duty construction in a compact package

  • Die cast mounting head with anti-rotational numb for single bolt installation

  • Aquabloc media for superior performance and element life

  • Easy servicing with spin-in element and bowl

  • 15 GPH for diesel and 25 GPH flow rate for gasoline

  • Also fits Fischer Panda PMS6/8/12 Mini Type generators


    • *Diesel or gasoline fuel powered stationary or mobile equipment including Pressure washer, Light tower, Gensets, Turf, Construction, ATV (4-wheeler), Small Gensets, Small Tractors, Any Small Engine
    Brand Parker | Racor Division
    Cross Reference / Specs YAMAHA
  • YMM2W0950100


  • Application: Outboard, Generator
  • Filters Gasoline, Diesel, or Gasoline/Oil blended fuels
  • Maximum Flow Rate: 25 GPH (95 LPH)
  • Replacement Filter: 10 micron = S2502
  • Micron Rating: 10
  • Replacement Bowl: 31391 - Plastic
  • Includes Bowl O-ring - 31185
  • Port Size: 1/4"-18 NPTF
  • Number of Ports: Inlets = 1, Outlets = 1
  • Minimum Service Clearance: Below-3.0 in. (7.6 cm)
  • Depth: 2.1 in. (5.3 cm)
  • Width: 2.3 in. (5.8 cm)
  • Height: 4.3 in. (10.9 cm)
  • Weight (Dry): 0.3 lb (0.14 kg)
  • Clean Presurre Drop: 0.35 PSI (0.02 bar)
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
    		•
