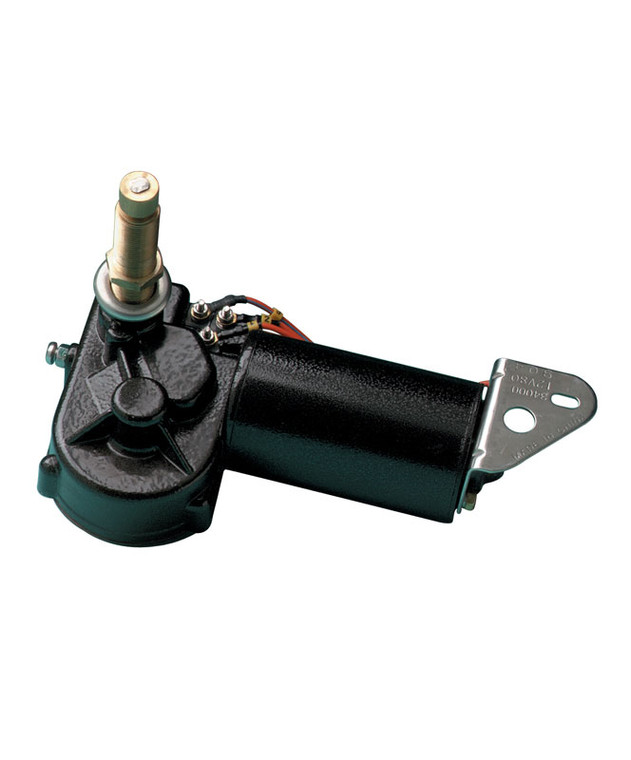

Marinco 34010 Wiper Motor, MRV, 12V, 2.5" Shaft, 110 Degree

Marinco 34010 Wiper Motor, MRV, 12V, 2.5" Shaft, 110 Degree

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.


Features:

Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree

0.625" diameter shaft (16 mm)

Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)

Corrosion-resistant casing

Heavy-duty motor with right angle drive

Two-speed motor, can be operated as one speed

Solid brass knurled drive nut with brass and stainless steel drive shaft

Adjustable right or left self parking, coast to park

Retail version includes 5 amp fuse and holder

Stainless steel fasteners and mounting bracket

Use with three-position switch (not included)

Compact size - 7.625" L x 4" W x 2" D

Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)

Stall current: 11.5-13.0 amps

No load current: 0.5-1.2 amps
